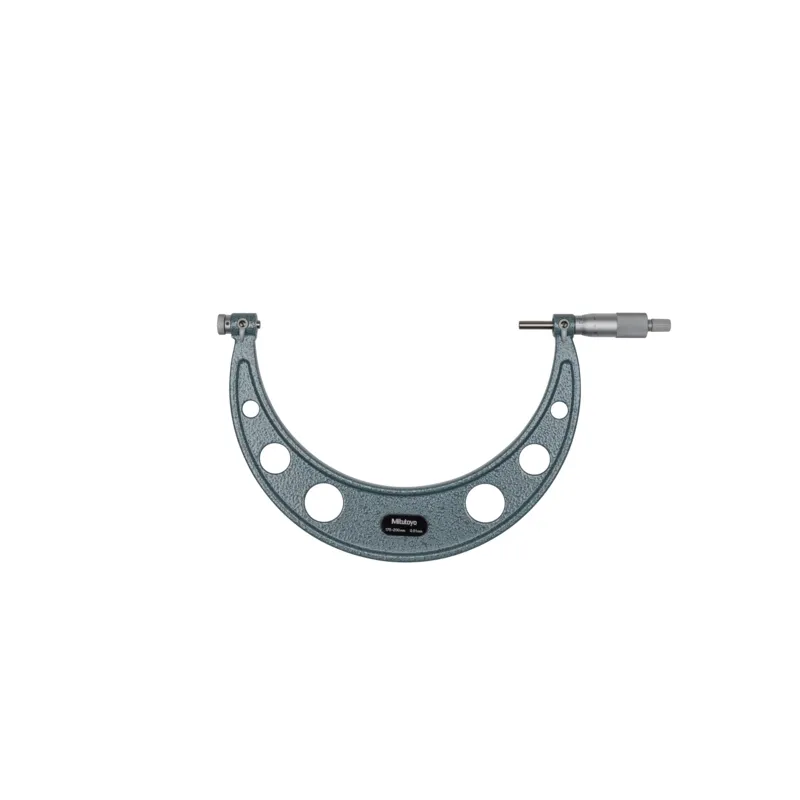

Mitutoyo 126-132 Screw Thread Micrometer Interchangeable Tips, 175 to 200 mm

Description

The Mitutoyo 126-132 screw thread micrometer is an analog (vernier) tool with an interchangeable anvil-spindle tip system for measuring the pitch diameter of various screw threads. Interchangeable anvils are sold separately.

Key features

•  Interchangeable anvil-spindle tips: The primary feature is the ability to use different V-anvil and conical spindle tip sets, which must be purchased separately. This allows you to measure the pitch diameter of various screw threads, including both Metric/Unified and Whitworth threads.
• Ratchet stop: The micrometer includes a ratchet stop mechanism, which ensures a constant measuring force. This feature guarantees consistent and repeatable measurements across multiple users and uses.
• Highly stable frame: The frame is designed to be highly stable and includes a heat shield. This helps maintain accuracy during extended measurement sessions by minimizing the effects of thermal expansion.
• Analog display: The micrometer features a satin chrome finish on the thimble and sleeve with clear markings, offering an analog display.
• High accuracy: It provides a high level of precision, with an accuracy rating of \(\pm 0.005\) mm or \(\pm 6\) µm, depending on the source.
• Metric measurement: The tool is designed for metric measurements, with a range of 175–200 mm and a graduation of 0.01 mm.

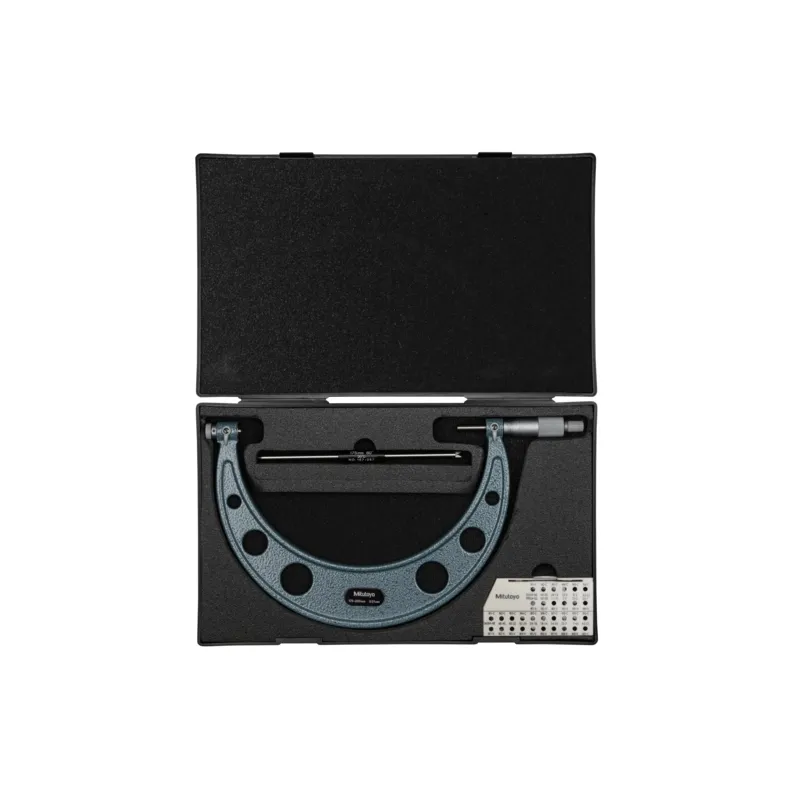

• Standard bar: A standard bar is included with the micrometer for setting the instrument before use.
