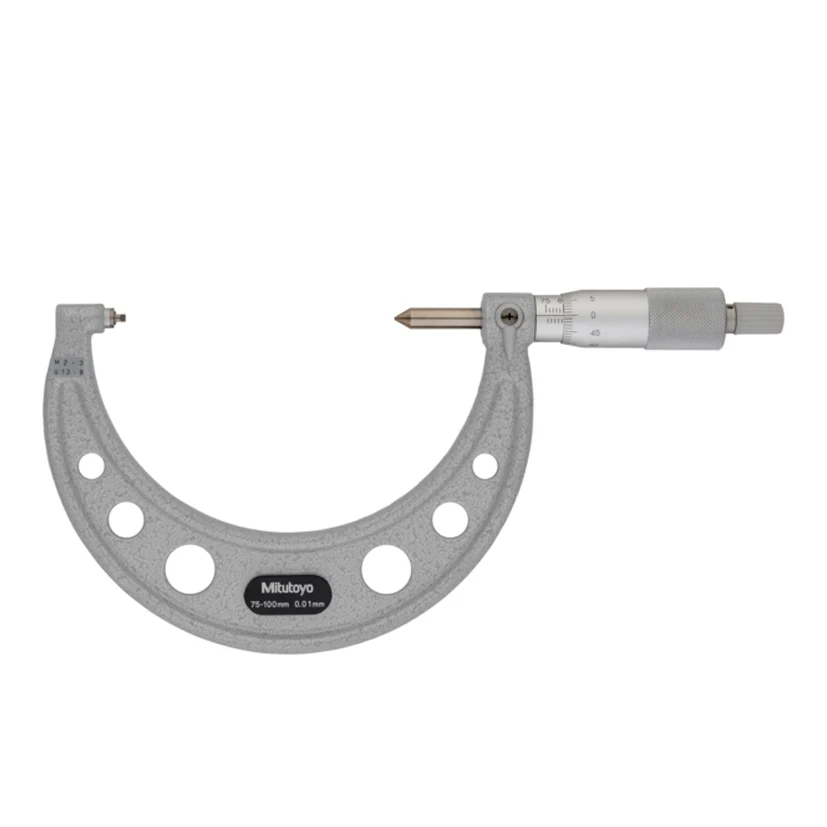

Mitutoyo 125-118 Screw Thread Micrometer, 75 to 100 mm, 2 to 3 mm/13-9TPI

Description

The Mitutoyo 125-118 Screw Thread Micrometer is a mechanical, analog micrometer for measuring the pitch diameter of 60° metric and Unified screw threads. It has a measuring range of 75 to 100 millimeters and can measure metric threads with a pitch of 2 to 3 millimeters, or Unified threads with 13 to 9 threads per inch (TPI). The screw thread micrometer is part of Mitutoyo's Series 125.

Key features

• Constant force mechanism: A ratchet-stop mechanism ensures consistent measurement force for precise and repeatable readings.
• Fixed anvil: The fixed 60° V-anvil works with the conical spindle to directly indicate the screw pitch diameter without the need for additional calculations.
• Durable materials: The measuring surfaces are made of hardened steel and the frame has a baked enamel finish for durability. The thimble and sleeve have a satin chrome finish.
• Laser-etched scale: The scale markings on the thimble are laser-etched for enhanced legibility.
• Setting standard: The micrometer includes a standard bar for performing zero-point adjustments.
• Protective case: It is supplied in a fitted plastic case for storage.
