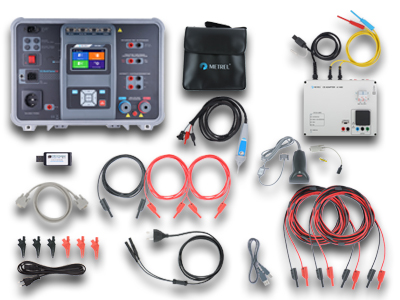

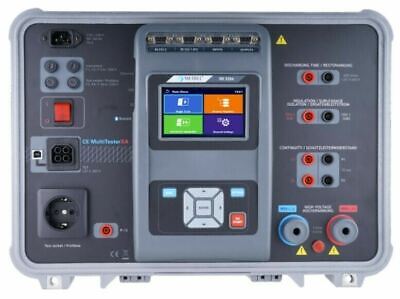

Metrel MI 3394 CE MultiTester XA Machinery Safety Tester, High Voltage, Continuity, Insulation Tester
Inhouse product
| Metrel's MI 3394 is a portable instrument designed for electrical safety testing and CE certification of electrical appliances, machines and switchboards during production.
The MI 3394 is designed to provide a comprehensive solution for testing. It can be used to perform high voltage, programmed AC/DC tests, checks continuity, insulation resistance, substitute leakage current, differential leakage current, touch leakage current, PE-leakage current, discharge time and performs functional tests (power P/S/Q, voltage, current, cosϕ, frequency, thdU, thdl, PF). |
| As well as its wide suite of measurement functions, the MI 3394 includes built-in memory storage for manging your testing results. The tester fully supports MicroSD cards of up to 8GB for expansion, with an 8GB card included as standard with the instrument.
This unit also includes a fully colour screen, RS232, USB and Bluetooth communication ports and multiple test terminals (choose between performing single tests or autosequences from a single test socket). This tester is suitable for use on TT, TN, IT and 115V supply systems. Metrel MI 3394 CE MultiTester Key Features Complete diagnostic system for checking the electrical safety of appliances/machines/switchboards during the production phase Perform high voltage, programmed AC/DC hipot testing (5kV at 500VA AC, 6kV DC) Perform continuity tests - 4 wire continuity test with selectable test current (0.2A, 4A, 10A and 25A) Measure insulation resistance Measure substitute leakage Measure differential leakage Measure touch leakage Measure PE-leakage current Calculate discharge time Perform function tests (power P/S/Q, voltage, current, cosϕ, frequency, thdU, thdl, PF) Built-in memory storage (MicroSD card) with support for SD cards up to 32GB Colour display - 3.4" colour LCD with touch screen RS232, USB and Bluetooth communication ports enabling downloading, uploading and remote control Multi-system testing - suitable for use on TT, TN, IT and 115V supply systems |
