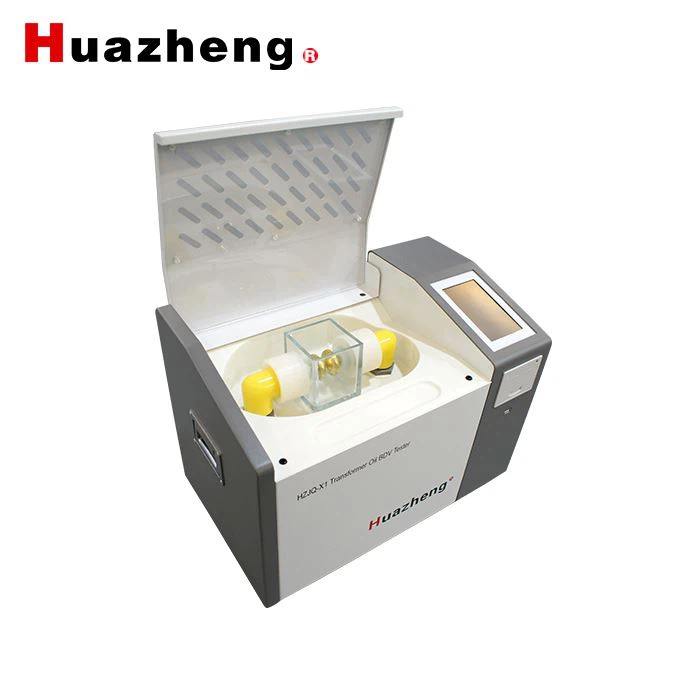

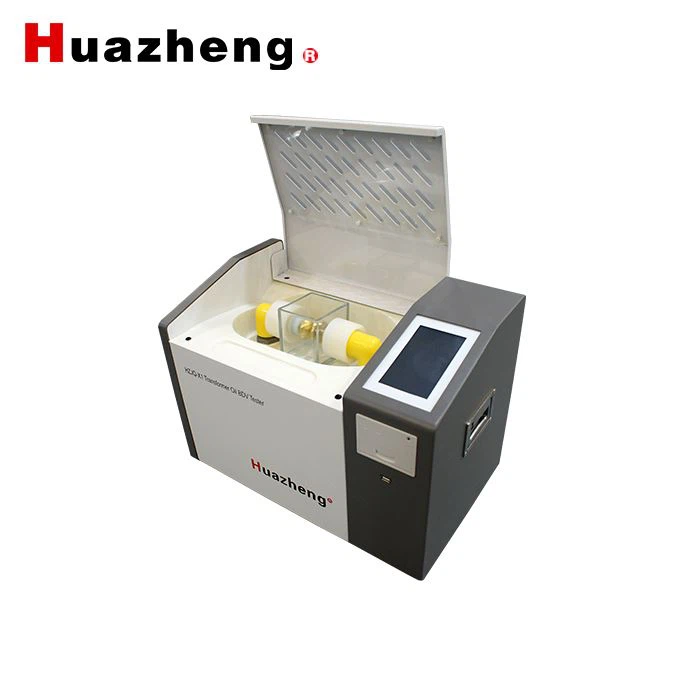

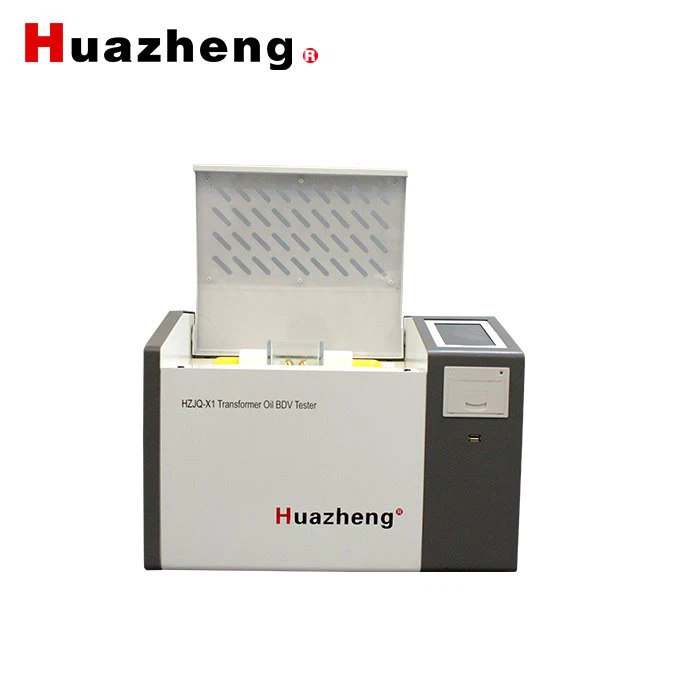

HuaZheng HZJQ-X1 Bdv Measuring Kit Oil Bdv Tester Transformer Oil Breakdown Voltage Test transformer Oil Bdv Test Device

Specification: The instrument features an output voltage range of 0–80kV with a voltage distortion rate of less than 3%, a booster capacity of 1.5kVA, and a measuring accuracy of ±3%. It operates on AC220V±10%, 50Hz±1Hz power supply, with a power consumption of 200W, suitable for temperatures between 0°C and 45°C and humidity below 75%RH. The overall dimensions are 460×280×320 mm.

Key Function And Feature:

1. With a microprocessor, automatically fulfill the withstand voltage test for oil circulation with a range of 0 ～ 80KV (including boosting, maintaining, mixing, standing, calculation, printing and other operations)

2. Display by large-screen LCD and prompt by English menu.

3. Simple operation. The machine will automatically complete the withstand voltage test on one cup of sample oil after simple setting by the operator. Breakdown voltage value of 1 to 9 times and recurrent times will be automatically saved. After the test, the thermal printer will print each breakdown voltage value and average value.

4. Power-down preservation. It can save 100 tested results.

5. Adopt a single-chip microcomputer to boost the voltage at an even speed. The voltage is accurate at 50HZ, ensuring the whole process easy for control.

6. Equipped with over-voltage, over-current and limit protections to ensure the safety of operators.

7. With the function of displaying the measured temperature and system clock.

8. Communicate with computer with a standard RS232 interface.

9. USB can export the test data.
