Sanwa YX361TR Analog Multimeter Variety of Measurement Functions using 24 Contact Switch

Description

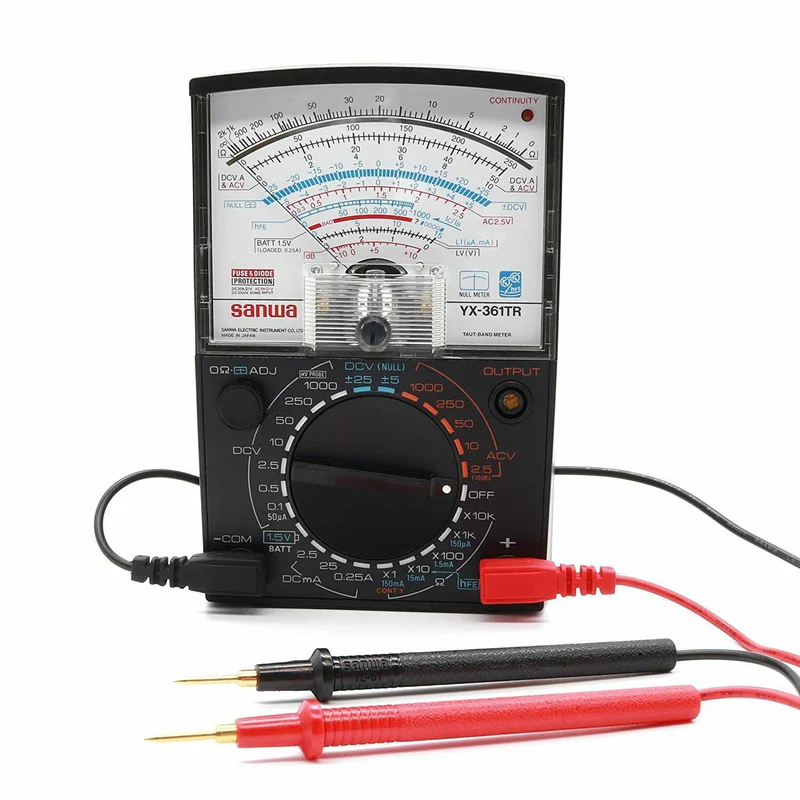

The Sanwa YX361TR is a manual-ranging analog multimeter designed for measuring low-voltage circuits, making it suitable for automotive, household, and industrial applications. It features an analog display, a taut-band meter for accuracy, and has 35 different measurement ranges.

Key Features

Analog display: Uses a needle and scale for measurement readouts.

Zero-center meter: A feature for measuring ±DCV (positive and negative DC voltage) with the indicator in the center of the scale.

Output terminal: Includes a series capacitor terminal, useful for measuring only the AC portion of a signal that contains both AC and DC.

Safety and durability: The instrument's circuitry is protected by a replaceable 250V/0.5A glass fuse. The hard plastic body protects the device from environmental wear and tear.

Power source: Uses two 1.5V AA batteries and one 9V battery.

Measurement functions: Includes a wide range of capabilities:

1.     DC Voltage: Up to 1000V.

2.     AC Voltage: Up to 1000V.

3.     DC Current: Up to 0.25A.

4.     Resistance: Measures up to 20MΩ.

5.     dB measurement: Measures signal power in the range of -10dB to +62dB.

6.     hFE (Transistor gain): Provides measurement for transistors.

7.     Continuity check: An LED indicates electrical conduction.

8.     Battery check: Assesses the remaining charge of batteries.
