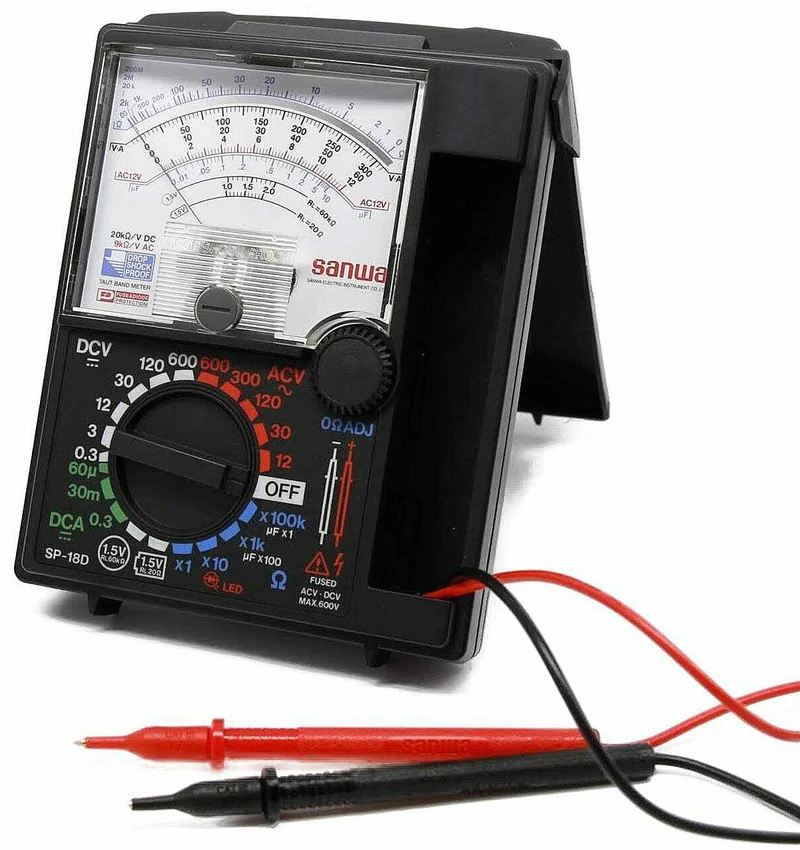

Sanwa SP-18D Analog Multimeter with Built-In Case

Description

The Sanwa SP-18D is an analog multimeter with a built-in, shock-resistant case, designed for low-voltage electrical testing. Its protective body cover can also be used as a stand, making it portable and suitable for field work.

Key Description

• Measurement functions: This versatile meter measures AC and DC voltage, DC current, resistance, and capacitance.

• Accuracy: The SP-18D offers an accuracy of ±3% of full scale for AC and DC voltage measurements.

• Measurement ranges:
  1.      DC Voltage: 0.3 to 600V (input resistance: 20kΩ/V).
  2.     AC Voltage: 12 to 600V (input resistance: 9kΩ/V).
  3.     DC Current: 60µA, 30mA, 0.3A.
• 4.     Resistance: Up to 200MΩ (with a low 3V terminal voltage for LED checks).
• Capacitance: 0.01μF to 1000μF.
• Display: Analog (no backlight).
• Safety features: The device includes overload protection via a built-in 0.5A/250V glass fuse.
• Durability: The protective cover makes the multimeter resistant to drop shocks.
• Power source: The unit is powered by two 1.5V AA batteries.
• Included accessories: The package typically includes attached test leads, a hand strap, and an instruction manual.
