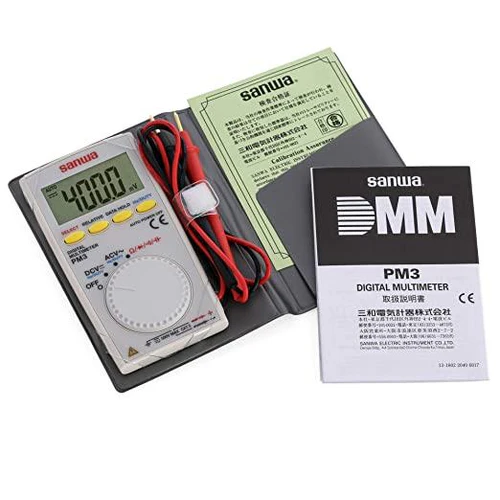

Sanwa PM3 Pocket Digital Multimeter with Folding Case

Description

The Sanwa PM3 is a pocket-sized digital multimeter designed for testing low-voltage circuits in electronics, small communications equipment, and household appliances. It is a thin, lightweight device that is highly portable, and some variants come with a protective leather or folding case.

Key Features

Display: It features a 3-3/4 digit, 4000-count digital LCD with a sampling rate of 3 times per second.

Compact design: The PM3 has a slim body, measuring just 8.5mm thick, making it easy to carry in a shirt pocket.

Convenient case: Many variants are supplied with a leather or folding case that protects the device from moisture and dust.

Safety rating: The meter is IEC61010-1 CAT. II 500V compliant, suitable for measurements on standard wall sockets and plug-in devices.

Power-saving functions: It includes an auto power-off function that activates after 15 minutes of inactivity to preserve battery life. This feature is also cancelable.

Data hold: A "Data Hold" feature allows you to freeze the current measurement on the screen.

Gold-plated leads: Some versions feature gold-plated test leads, which improve electrical contact.

Measurements: The PM3 can measure a variety of electrical parameters, including:

     1. AC/DC Voltage (up to 500V)

     2. Resistance (up to 40MΩ)

     3. Capacitance (up to 200μF)

     4. Frequency (AC sine wave only)

     5. Duty cycle

     6. Continuity with a buzzer

     7. Diode testing
