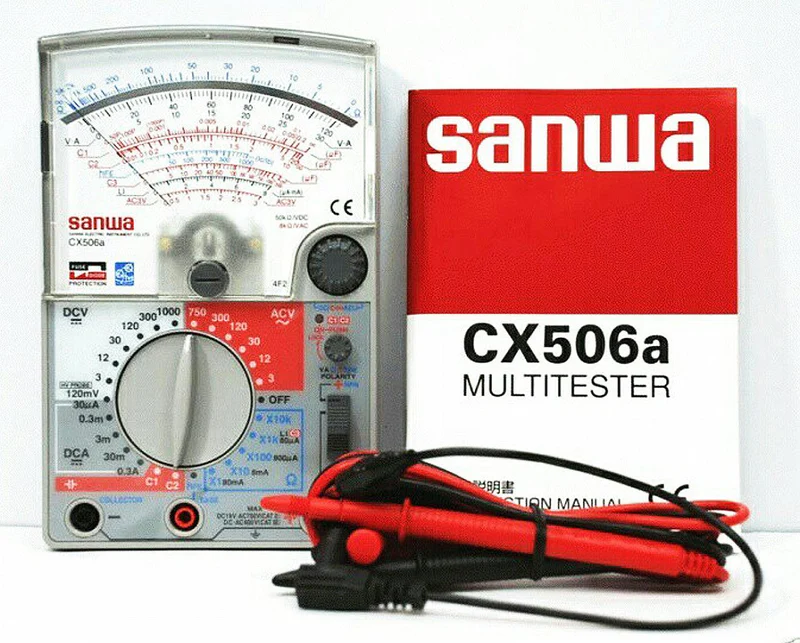

Sanwa CX506a Analog Multimeter with Capacitance Measurement and Built-in Transistor Oscillator

Description

The Sanwa CX506a is a portable analog multimeter featuring a built-in transistor oscillator for capacitance measurement. Designed for both hobbyists and professionals, it offers a wide range of functions for measuring low-voltage circuits and home appliances.

Key Features

• Capacitance measurement: A unique feature enabled by the built-in transistor oscillator, allowing the device to measure capacitance over a broad range.
• Transistor checker: The CX506a can also be used to test Bi-junctional transistors (BJT).
• High input resistace: Features a high-sensitivity taut-band meter with a 50kΩ/V input resistance on DC voltage ranges from 3V to 300V, which helps to ensure accurate readings.
• DC polarity switch: A switch allows you to reverse the polarity for DC voltage and DC current readings, which is a useful feature when troubleshooting.
• Multi-functional switch: A 26-position selector switch provides a wide variety of measurement functions.
• Range: The measurement is divided into three scales:

               1.   C1: 50 picofarads (pF) to 0.2 microfarads ($\mu$F)

               2.   C2: 0.01 microfarads ($\mu\(F)to20microfarads(\)\mu$F)

               3.   C3: 1 microfarad ($\mu\(F)to2000microfarads(\)\mu$F)
