Radio Detection LMX100 Ground Penetrating Radar Real-time Locate & Mark

Description

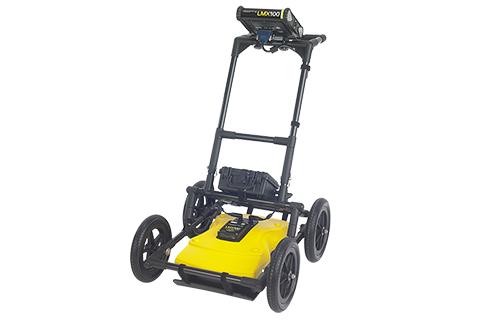

The Radio Detection LMX100 is a ground-penetrating radar (GPR) system designed for real-time detection and marking of underground utilities and other subsurface features. It is a portable and user-friendly tool that provides a visual picture of what is beneath the ground, including metallic and non-metallic objects.

Key Features

• Non-metallic detection: Unlike electromagnetic (EM) locators, GPR can detect non-metallic utilities like PVC pipes, concrete structures, and fiber optic cables, which may not have a tracer wire. It also finds utilities with broken tracer wires and undocumented utilities.
• Target enhancement: Patented DynaT™ (Dynamic Target Enhancement) technology helps optimize the visibility of small, medium, and large targets, while preset filters and adjustable gain help to enhance the image quality.
• Image optimization: Patented DynaQ® (Dynamic Quality) technology automatically adjusts the data stacking (averaging) based on the user's survey speed. A slower pace results in more averaging and better signal quality for deeper penetration.
• On-site reporting: The system has built-in Wi-Fi and USB connectivity, allowing users to create and share "mini-reports" from the field. Screen captures are geo-tagged and can be exported as KMZ files for viewing in Google Earth.
• Rugged and portable: The lightweight fiberglass frame is designed for easy transport and use in rough environments. Its non-metallic construction also eliminates interference with GPR signals.
• Pinpoint location: After seeing a hyperbolic response on the screen, the operator can roll the system backward along the same path. A vertical line on the display helps align the system precisely over the apex of the hyperbola to identify the exact location of the target.
• Depth estimation: A crosshair on the display can be aligned with the target's apex to show a real-time depth estimate.
• Instant marking: Once the target is located, the user can mark its position directly on the ground.
• Easy setup: The LMX100 is ready for use right away with no complex calibration required before operation.
