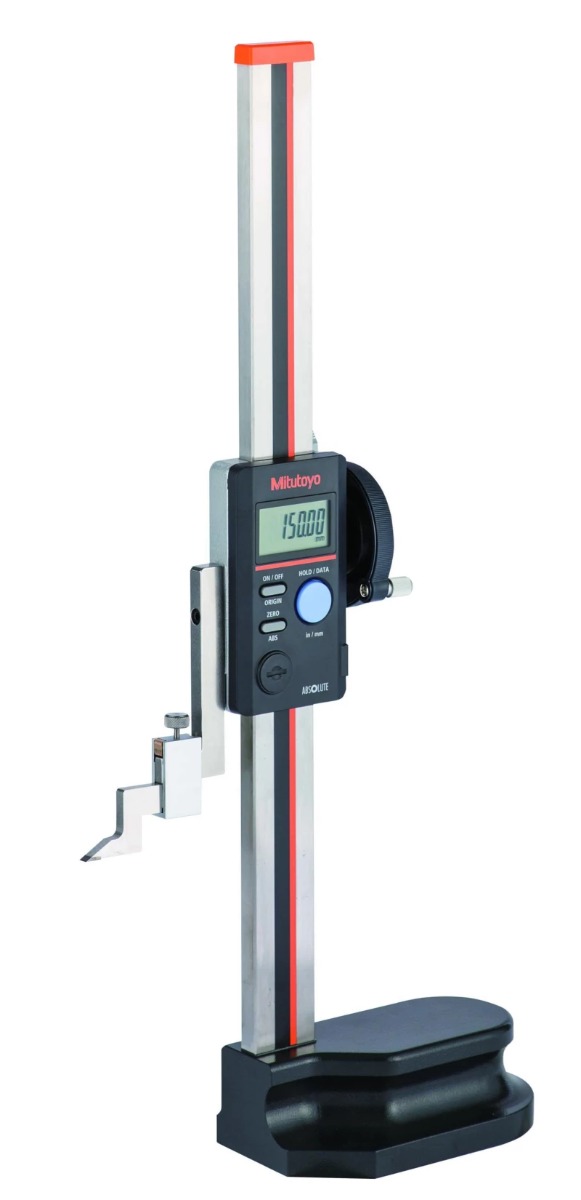

Mitutoyo Series 570 Absolute Digimatic Height Gauge with slider feed wheel, 0 to 24"/0 to 600 mm, 0.0005"/0.01 mm

Description

The Mitutoyo Absolute Digimatic Height Gauge with a 0 to 24"/0 to 600 mm range and 0.0005"/0.01 mm resolution is a high-precision digital measuring tool. It is engineered for industrial and scientific applications that require accurate height measurements and scribing.

Features and specifications

• Measurement range: 0 to 24 inches or 0 to 600 millimeters.
• Resolution: 0.0005 inch or 0.01 millimeter.
• Absolute linear encoder: The built-in absolute (ABS) linear encoder technology maintains the starting point even if the power is turned off, which eliminates the need to reset the reference point.
• Display: A large LCD screen displays clear digital readings in either inches or millimeters for easy viewing.
• Drive method: A large, hand-operated feed wheel allows for smooth and precise vertical movement of the slider.
• Data output: The gauge includes a Statistical Process Control (SPC) data output port, allowing for integration with measurement and data collection systems.
• Construction: The unit features a rigid column structure and an ergonomic base for high durability, accuracy, and stability.
• Power: It runs on a single SR44 battery, which provides a long battery life of up to 20,000 hours in some models.
• Included accessories: It typically comes with a carbide-tipped scriber and scriber clamp for marking workpieces.
