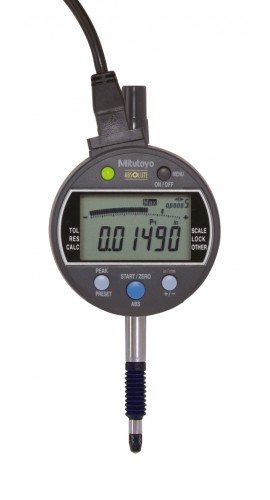

Mitutoyo 543-352-10 Digital Indicator Signal ID-C, ANSI/AGD, inch/metric

Description

The Mitutoyo 543-352-10 Digital Indicator Signal ID-C is an externally-powered, inch/metric digital indicator with a signal output function for fast, automated tolerance judgments. The model features a lug-style back and is dust and splash water-protected, conforming to IP54 standards.

• Key features
• High-speed peak detection: The indicator has a fast measurement frequency mode of 50 times per second, which allows for reliable peak detection (MAX/MIN/RANGE).
• Automated tolerance judgment: A green/red LED system visually indicates if a measurement is within tolerance, while the signal output can be sent to an external device, such as a sequencer.
• ABSOLUTE linear encoder: This technology restores the last origin position automatically when the indicator is turned on, so you do not have to set the origin after every power-up.
• Calculation function: A function Ax allows you to define a coefficient A for various calculation types, simplifying measurements for specific applications.
• Tolerance settings: You can save up to three different preset and tolerance settings, which is useful for different applications and measurements.
• Free parameter-setting software: Mitutoyo offers software (such as USB-ITPAK) that allows you to control all the indicator's functions and lock settings to prevent accidental changes.
