Mitutoyo 500-507-10 Absolute Digimatic Calipers 1000mm (40in)

Description

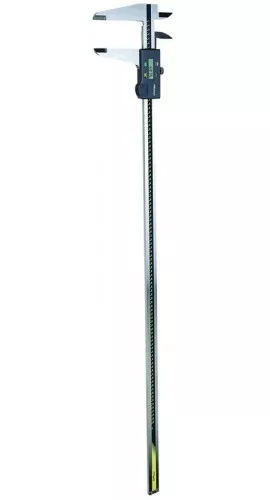

The Mitutoyo 500-507-10 is a high-accuracy, long-range Absolute Digimatic caliper with a measuring capacity of 1000mm (40 inches). This professional-grade tool is built with a hardened stainless steel body for durability and a large, easy-to-read LCD display for clear measurements.

Key features

• Absolute (ABS) scale: The caliper's origin point is set once and stored, so it always displays the true position from the zero point even when turned on and off. This eliminates the need for repeated zero-setting and prevents over-speed errors.
• Measurement range: 0 to 1000mm (0 to 40 inches).
• Resolution: 0.01mm (0.0005 inches).
• Accuracy: $\pm$0.07mm (±0.003 inches).
• Measurement types: Capable of making four-way measurements for outside dimension (OD), inside dimension (ID), depth, and step.
• SPC data output: Includes a data output port for statistical process control (SPC), allowing for easy data management in real-time.
• Design: The caliper has a robust, long-beam design with a smooth slider mechanism.
• Case: The 1000mm model is typically supplied in a fitted wooden case for protection.
• Battery: Uses an SR
