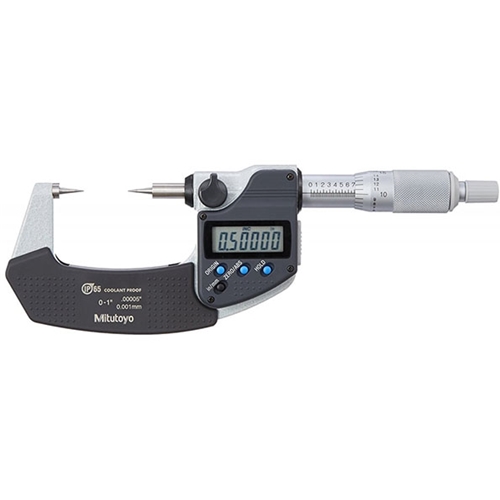

Mitutoyo 342-351-32 Digital Point Micrometer, 0 to 1" (0 to 25.4 mm), 15°

Description

The Mitutoyo 342-351-32 is a digital point micrometer that is designed for measuring hard-to-reach features, such as the web thickness of drills, small grooves, and keyways. Its pointed spindle and anvil, with a 15° point, allow for precise measurement in confined areas.

key features

• Specialized measurement points: A pointed spindle and anvil with a 15° measuring point radius of approximately 0.3mm (.012") allow it to measure features standard micrometers cannot reach, such as the web thickness of drills, keyways, and small grooves.
• IP65 Protection: This rating means the micrometer is protected from dust and is water-resistant, making it suitable for use in harsh workshop environments where it may be exposed to cutting oil or coolant.
• High accuracy and resolution: It offers a resolution of 0.00005" (0.001 mm) and an accuracy of ±0.0001" (0.00254 mm), ensuring precise measurements.
• Ratchet-stop mechanism: This feature applies a constant and uniform measuring force to the workpiece, ensuring repeatable and accurate results across different users.
• SPC data output: The micrometer includes an SPC (Statistical Process Control) output function, allowing for seamless integration with data management systems for quality control.
• Intuitive digital display: An easy-to-read LCD screen provides clear measurements, with functions for origin setting, zero/ABS, data hold, and unit conversion.
