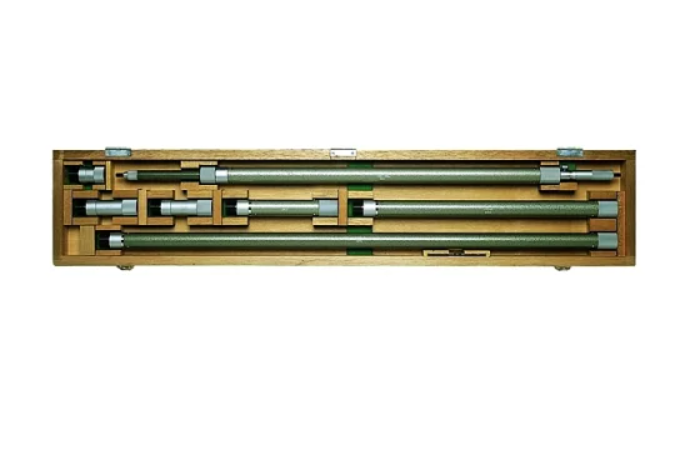

Mitutoyo 140-162 Series 140 2-Point Tubular Inside Micrometer with Extension Pipes, 40 to 120"

Description

The Mitutoyo 140-162 Series 140 is a 2-point tubular inside micrometer designed for measuring a wide range of large internal diameters. It is an inch-unit model that uses a combination of extension pipes and the micrometer head to provide measurements from 40 to 120 inches.

Key features

• Wide measurement range: The 140-162 provides a total measurement range from 40 to 120 inches.
• Extension pipes: This range is achieved by combining a 2-inch travel micrometer head with six interchangeable tubular extension pipes: 2", 4" (2 pieces), 8", 20", and 40".
• High precision: The micrometer offers a high-resolution graduation of 0.001 inch.
• Carbide measuring faces: The measuring surfaces are made of durable carbide, which provides wear resistance and maintains accuracy over time.
• Durable and lightweight construction: The Series 140 uses large-diameter, tubular extension pipes. This makes the tool both highly durable and lightweight, which is beneficial for handling large-scale measurements.
• Satin-chrome finish: The micrometer head is finished with satin chrome to resist rust and reduce glare, making it easier to read the scale.
