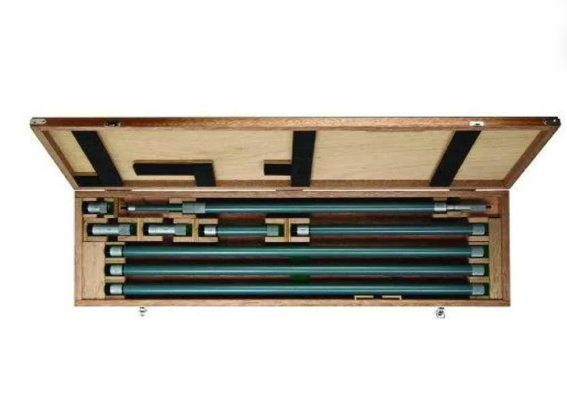

Mitutoyo 140-160 Series 140 2-Point Tubular Inside Micrometer with Extension Pipes, 1,000 to 5,000 mm

Description

The Mitutoyo Series 140 2-Point Tubular Inside Micrometer with Extension Pipes, 140-160, is a high-precision mechanical measuring instrument designed for taking large inside diameter measurements from 1,000 to 5,000 mm. The tubular construction of the extension pipes makes them lighter and more rigid than solid extension rods, which is a major benefit for large-scale applications.

Key features

• Adaptable length: The system's primary advantage is its use of eight interchangeable tubular extension pipes, which can be combined to achieve a wide range of internal diameter (ID) measurements, from 1,000 to 5,000 mm.
• Versatile application: This extended range makes it ideal for measuring large internal dimensions of cylinders, rings, pipes, and other large workpieces.
• Accurate readings: The micrometer features a metric vernier scale with a graduation of 0.01 mm, enabling precise and repeatable ID measurements.
• Carbide measuring faces: Its durable carbide measuring faces are resistant to wear, ensuring long-term accuracy and reliable performance.
• Adjustable index: The micrometer's sleeve is adjustable, allowing the user to precisely set the index line when using a length standard for calibration.
