Mitutoyo 103-148-10 Outside Micrometers Series-103 METRIC 275-300mm

Description

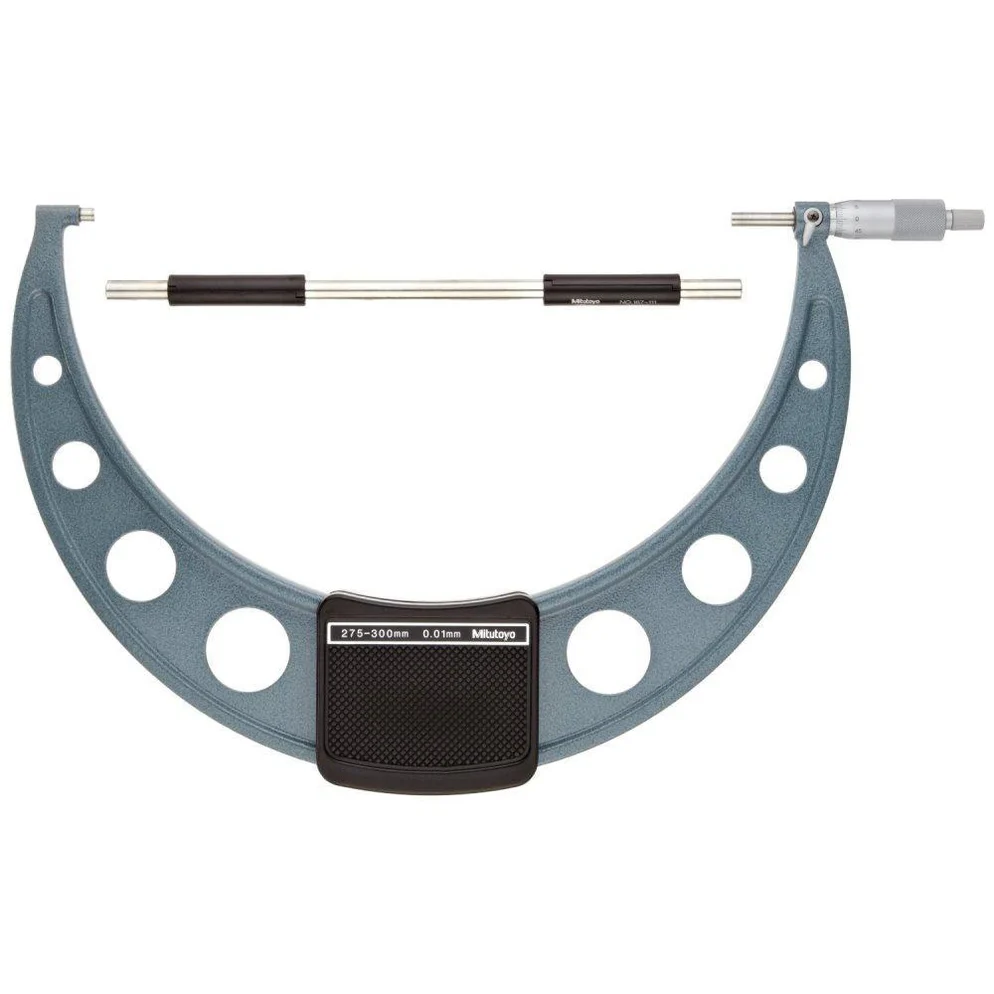

The Mitutoyo 103-148-10 is a metric outside micrometer with a 275–300mm measuring range and a 0.01mm graduation. It is part of the Series 103 line and is manufactured by the Japanese company Mitutoyo. This model is manual (analog) and features a ratchet stop for consistent measuring force.

Key features

• Constant measuring force: It is equipped with a ratchet-stop mechanism, which clicks when the spindle comes into contact with the workpiece. This ensures uniform pressure for precise and repeatable readings.
• Constant measuring force: It is equipped with a ratchet-stop mechanism, which clicks when the spindle comes into contact with the workpiece. This ensures uniform pressure for precise and repeatable readings
• Clear, rust-resistant scale: The thimble and sleeve are finished with satin chrome, which helps prevent rust and reduces glare, making the vernier scale easier to read.
• High accuracy and resolution: It provides a resolution (graduation) of 0.01mm and a guaranteed accuracy of ±0.005mm.
• Convenient spindle lock: The spindle can be locked in place with a spindle clamp to hold a measurement securely.
• Includes setting standard: A standard reference bar is included for calibration, with the exception of the 0–25mm models.
• Protective case: It is supplied in a fitted plastic case for protection during storage and transport.
