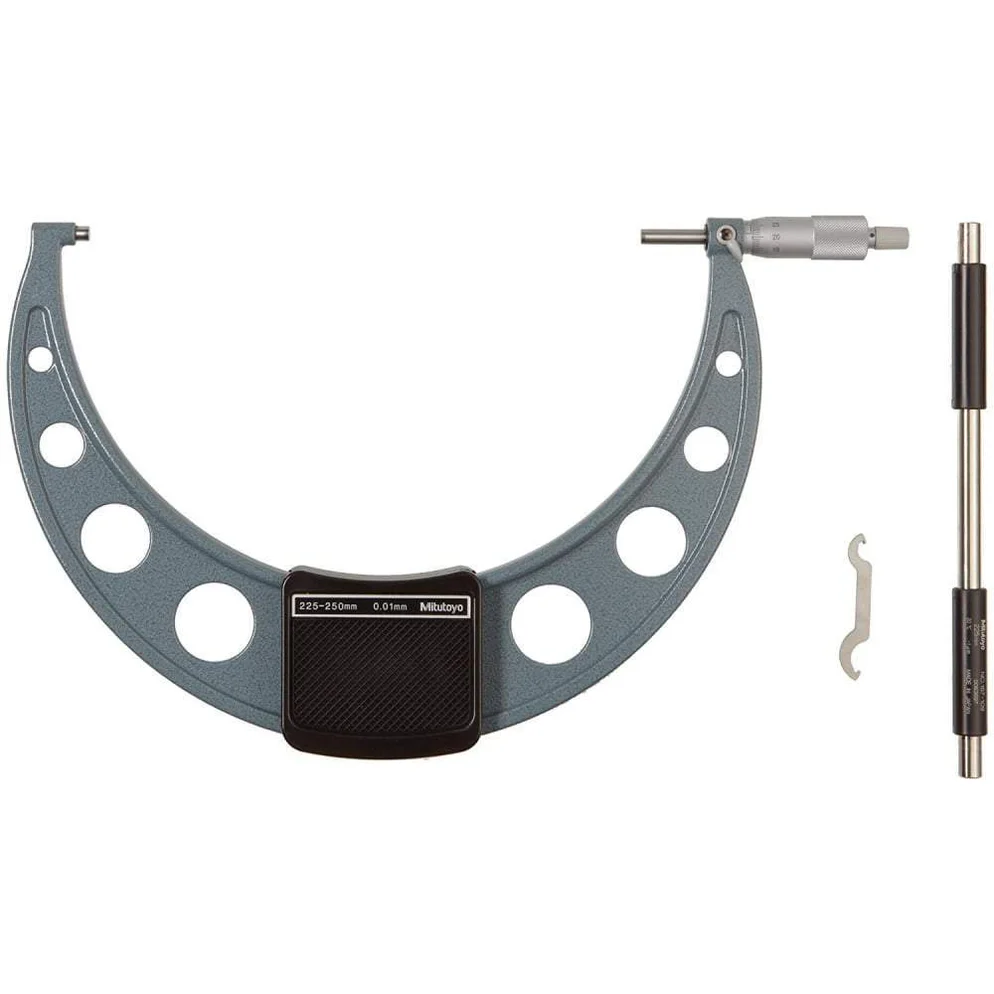

Mitutoyo 103-146-10 Outside Micrometers Series-103 METRIC 225-250mm

Description

The Mitutoyo 103-146-10 is a Series 103 metric outside micrometer with a measuring range of 225–250mm. It is an analog tool featuring a ratchet stop mechanism for consistent pressure when measuring.

Key features

• Baked-enamel frame: The micrometer's lightweight frame has a durable, baked-enamel finish that provides protection and longevity.
• Satin-chrome finish: The thimble and sleeve are finished with satin chrome, which reduces glare and resists rust for easier, more reliable readings.
• Carbide-tipped faces: The spindle and anvil have micro-lapped, carbide-tipped measuring faces, offering superior wear resistance to maintain flatness and accuracy over time.
• Ratchet stop: A key feature is the ratchet stop mechanism, which ensures a constant and uniform measuring force. This is crucial for achieving precise and consistent, repeatable results.
• Spindle lock: The integrated spindle lock secures the measurement position, preventing accidental changes while you read the value.
• Vernier scale: The micrometer uses an analog vernier scale graduated to 0.01mm for taking precise outside diameter (OD) measurements.
