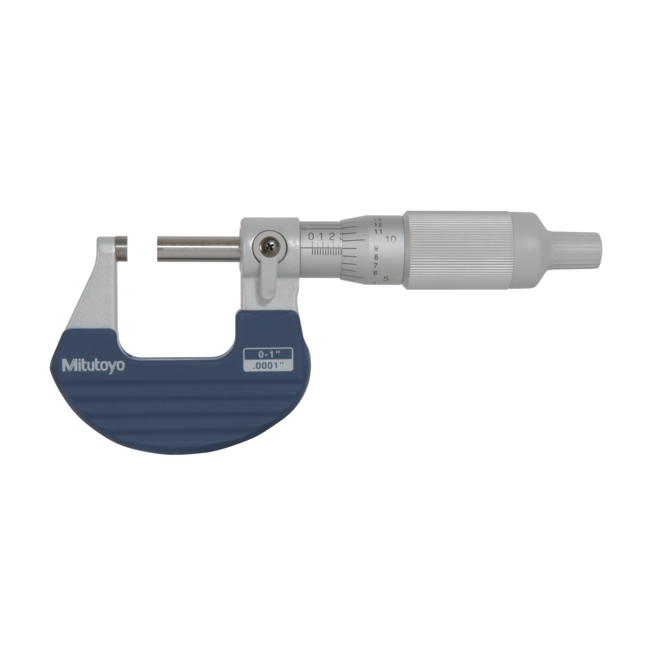

Mitutoyo 102-717 Series 102 Mechanical Ratchet-Thimble Micrometer, 0 to 1", SAE

Description

The Mitutoyo 102-717 is an imperial (SAE) mechanical outside micrometer with a 0 to 1" measurement range. The ratchet thimble on this tool helps ensure consistent and repeatable measurements by applying a constant, preset force to the workpiece.

Key features

• Ratchet thimble and speeder: The ratchet mechanism is integrated into both the thimble and the speeder, allowing for one-handed operation. The audible clicking of the ratchet ensures that a constant, preset measuring force is applied every time, which is critical for repeatable results.
• High accuracy and resolution: This micrometer offers a high resolution of 0.0001" using its vernier scale, with a specified accuracy of \(\pm 0.0001\)" for its 0-1" range.
• Durable measuring faces: The anvil and spindle are tipped with carbide, a highly durable material that resists wear and keeps the faces flat over a longer period, ensuring sustained accuracy.
• Satin chrome finish: The thimble and sleeve have a satin chrome finish that resists rust and reduces glare, making it easier to read the scale in various lighting conditions.
• Heat-insulated frame: The frame is designed with a heat-insulated section to prevent heat from the user's hand from affecting the dimensions of the micrometer, ensuring consistent measurements.
• Spindle lock: A convenient spindle lock helps to secure the measurement in place after taking the reading, preventing any accidental movement of the spindle.
• Certificate of inspection: The tool comes with a Certificate of Inspection from Mitutoyo, confirming its accuracy and quality.
• Protective case: It is supplied in a fitted plastic case to keep it safe during storage and transport.
