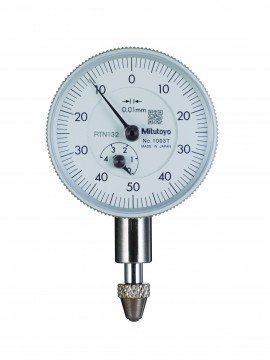

Mitutoyo 1003AB Series 1 Compact Small Diameter Dial Indicator, 4 mm, 0.01 mm graduation

Description

The Mitutoyo 1003AB is a compact, small-diameter dial indicator with a 4 mm measurement range and 0.01 mm graduations, specifically designed for applications in restricted or tight spaces.

Key features

• Compact design: With a small 36 mm bezel diameter, the indicator is ideal for gaging jigs and other restricted-space applications.
• Durable construction:
• The spindle and stem are made of hardened stainless steel, ensuring long life and durability.
• The frame uses a 4-screw mounting system to increase impact resistance, helping maintain accuracy over time.
• High precision: A machine-ground rack gear provides a tighter fit and increased measurement accuracy.
• Trouble-free clamping: A revolutionary stem-bush design provides a longer clamping range and trouble-free clamping for easier setup.
• Zeroing capability: An easy-to-use thumb screw bezel lock allows for quick zeroing.
• Dust resistance: With no through-screw hole on the frame, the design offers higher resistance to dust.
• Reliable contact point: The carbide-tipped contact point (M2.5 x 0.45 thread) ensures long-lasting accuracy and durability.
• Anti-magnetic: The indicator is anti-magnetic, which prevents it from being influenced by magnetic fields and ensures better accuracy when working around metals.
