Megger MIT2500 Insulation & Continuity Tester, 50V to 2.50 kV

Desccription

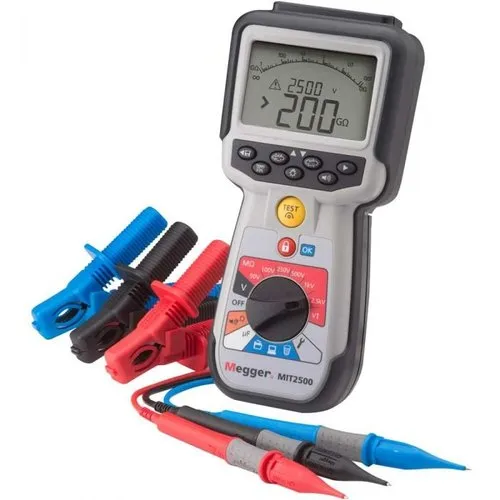

The Megger MIT2500 is a high-voltage, handheld insulation and continuity tester designed for professional electrical and industrial applications where operating voltages exceed 1000 V. It offers a versatile testing range from 50 V to 2.5 kV and features a digital display with both digital and analog readouts.

Key features

• Insulation testing: Tests up to 2.5 kV and can measure insulation resistance up to 200 GΩ. It offers both fixed voltage ranges (50 V, 100 V, 250 V, 500 V, 1000 V, and 2500 V) and a variable mode for adjusting the voltage in 1 V or 10 V increments.
• Continuity testing: Provides a fast, single-range continuity test from 0.01 Ω to 1 MΩ, with options for 20 mA or 200 mA test currents. It can also perform bi-directional testing without swapping leads.
• High accuracy: Features a guard terminal to prevent errors from surface leakage currents on contaminated equipment or cables, which is especially important for high-resistance measurements. The test voltage is feedback-controlled, maintaining accuracy to +2% -0% of the selected range.
• Advanced measurements: Includes Polarization Index (PI) and Dielectric Absorption Ratio (DAR) modes, as well as timed tests.
• Data logging: Allows you to store over 1000 test results in the onboard memory, which can be downloaded to a computer via Bluetooth.
• Rugged design: The device has a durable, over-molded, rubber casing for excellent grip and is sealed to an IP54 weatherproof rating.
• Safety features: Includes live voltage detection and a CAT IV 600 V safety rating for enhanced operator protection.
• Power source: Operates on 6 AA alkaline batteries or rechargeable NiMH cells.
