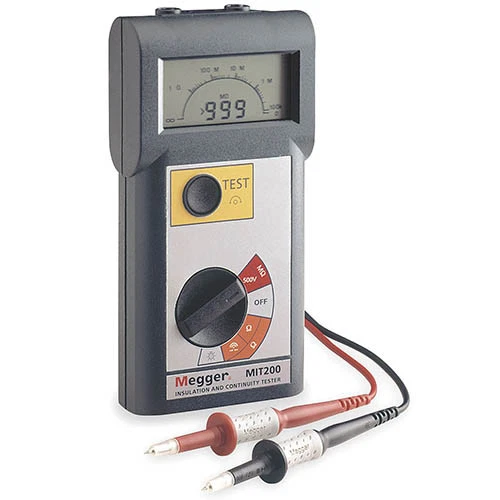

Megger MIT200 500V Insulation and Continuity Tester

Description

The Megger MIT200 (500V model) is a compact, battery-operated insulation and continuity tester. It is designed for use by electricians and maintenance technicians for testing electrical installations, appliances, and wiring systems. The device features a dual digital and analog display to provide both a precise reading and a visual representation of the insulation test.

Key features

• Test voltage: 500 V DC for insulation resistance testing.
• Insulation testing range: 10 kΩ to 1000 MΩ.
• Continuity testing: Measures continuity up to 100.0 Ω, with a buzzer that sounds at a threshold of 2 Ω. A low-resistance range of 0–10 Ω is tested at a high current (\(>200\text{\ mA}\)) to meet international standards.
• Safety features: The device warns of and inhibits testing on live circuits carrying more than 50 V. It has a CAT III 600 V safety rating, meeting IEC 61010 standards. The unit is rated to IP40 for environmental protection against objects.
• Display: Features a digital display with a responsive analog arc for observing circuit charge and discharge.
• Power source: Operates on six AA alkaline or rechargeable NiMH batteries.
• The Megger MIT200 is suitable for a wide range of electrical testing applications, including:
• Fixed electrical wiring systems
• Transformers
• Motors and generators
• Switchgear and panel building
• Domestic appliances and power tools
