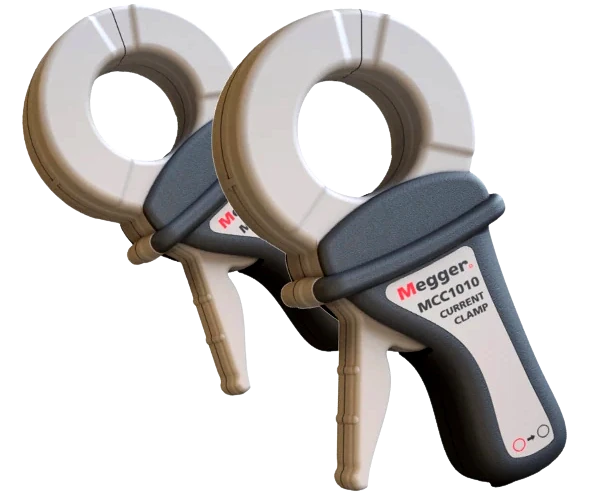

Megger MCC1010 Current Clamp, CAT IV 600 V to 1000 A AC

Description

The Megger MCC1010 is a high-accuracy, non-contact AC current clamp designed for measuring AC currents up to 1000 A. It is rated to CAT IV 600V, providing a high level of safety for demanding electrical applications.

Key features

• Measurement range: Measures AC current from 1 mA to 1000 A, making it suitable for a wide range of applications, including leakage current testing.
• Accuracy: Provides excellent accuracy, with a 0.3% error at full range, and a minimal phase shift of 0.7° at full range for precise power quality analysis.
• 1000:1 step-down ratio: This ratio allows the connected instrument to measure a smaller, safe-to-read current that corresponds directly to the much larger current flowing through the cable.
• Connectivity: It features standard 4mm shrouded connections, making it widely compatible with a variety of test equipment, including multimeters, power quality analyzers, and oscilloscopes.
• Large jaw opening: The clamp has a maximum jaw opening of 52 mm, accommodating large cables often found in industrial environments.
• FeNi alloy magnetic core: The use of a high-permeability iron-nickel alloy in the magnetic core contributes to its high performance and accuracy.
• Overvoltage protection: It includes a voltage-limiting circuit to protect the output terminals and ensure the clamp is safe to touch under all rated conditions.
• Environmental protection: The clamp has an IP40 rating with the jaws closed, protecting it against solid objects.
