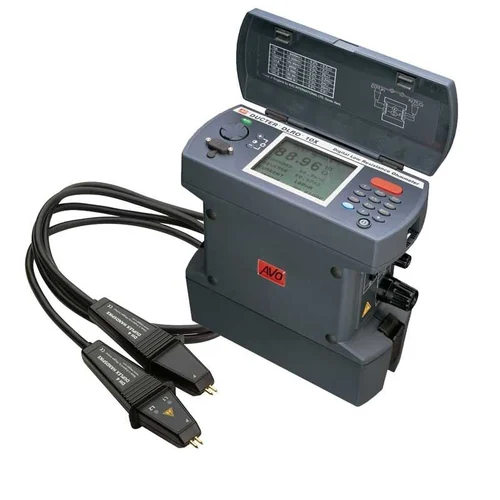

Megger DLRO-10X Digital Low Resistance Ohmmeter, 10-Amp

Description

The Megger DLRO-10X is a digital low resistance ohmmeter, also known as a micro-ohmmeter or "ducter," used for measuring low resistances in electrical components and connections. It is a durable, portable device designed for field and laboratory use.

Key features

• High Accuracy: Provides accurate resistance measurements within 3 seconds, with a basic accuracy of 0.2%.
• Automatic Operation: Automatically selects the most suitable test current, up to 10 A DC, to measure resistance from 0.1 µΩ to 2000 Ω.
• User Control: Features a menu system and two-axis paddle for manually selecting the test current, giving you more control than the standard DLRO-10 model.
• Data Logging and Storage: Includes on-board memory to store up to 700 test results along with alphanumeric notes entered via a keypad. An RS232 port allows for data download to a PC.
• Backlit LCD Display: A large, backlit LCD display is easy to read in all lighting conditions.
• Automatic Current Reversal: Cancels out the effects of standing voltages (EMFs) by taking both forward and reverse measurements and averaging them.
• Safety Features: Includes high voltage warnings, continuity detection for test leads, and protection against accidental connection to external voltages up to 600 V.
• Operating Modes: Offers multiple testing modes, including Normal, Auto, Continuous, Inductive, and a Unidirectional mode for faster measurements.
• Versatile Power Supply: Can be powered by a rechargeable NiMH battery pack or an optional mains power supply.
• Rugged and Portable: Built into a strong, lightweight case with an IP54 rating during operation, making it suitable for demanding environments.
