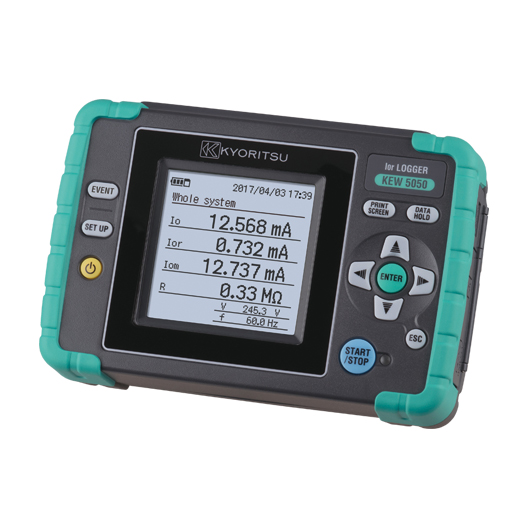

Kyoritsu 5050-00 Ior Logger, 4 channels

Description

The Kyoritsu 5050-00 Ior Logger is an advanced 4-channel data logger for detecting and analyzing leakage current in electrical systems. Its primary function is to measure and record the resistive component of leakage current, known as Ior, which is the most dangerous component and can lead to electrical fires and shocks.

Key Features

• 4-channel recording: Capable of simultaneously measuring and logging up to four parameters at once.
• Flexible wiring systems: Supports various wiring configurations, including single-phase 2- and 3-wire, and three-phase 3- and 4-wire systems.
• Separate sensor models: The base unit (5050-00) does not include current sensors, allowing you to choose from various optional clamp sensors depending on the application.
• Large graphic display: The clear display shows measurement values and allows for on-screen review of logged data.
• Built-in magnet: A magnet on the back of the casing allows for convenient attachment to metal enclosures.
• Non-volatile memory: Retains recorded data even after battery depletion or replacement.
• Robust construction: Built to withstand industrial environments, with an IP54 rating for protection against dust and water spray.
