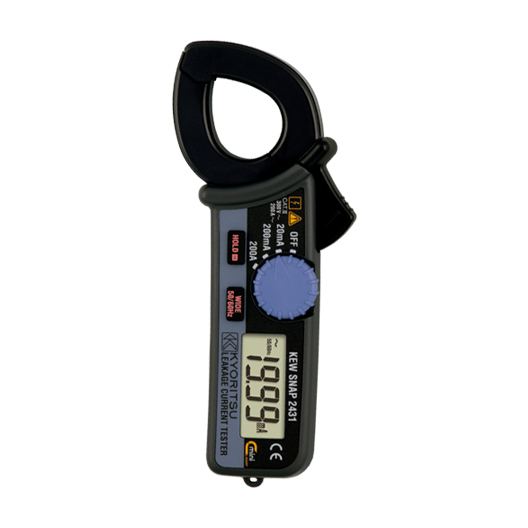

Kyoritsu 2431 Leakage Clamp Meter

Description

The Kyoritsu 2431 is a specialized digital AC leakage clamp meter known for its high sensitivity and compact, ergonomic design. Unlike general-purpose clamp meters, it is optimized for measuring very low AC leakage currents as well as higher load currents.

Key Features

• High sensitivity: The 2431 can measure AC current in three ranges, down to 0.01 mA in the 20 mA range. This precision allows technicians to detect minute current leakages that could indicate insulation faults or other issues.

• Tear-drop shaped jaws: The slim, tear-drop shaped jaw design is a key feature that allows technicians to access crowded cable areas and other tight spots where conventional clamps may not fit. The jaw size is approximately 24 mm.

• Frequency filter switch: Harmonics generated by inverters and other modern equipment can interfere with accurate leakage readings. The 2431's frequency selector switch allows the user to filter out these harmonics and measure only the fundamental 50/60 Hz frequency.

• Data hold: This feature freezes the measurement on the display, making it easy to read in locations that are hard to see.

• Auto power-off: To conserve battery life, the meter automatically shuts off after approximately 10 minutes of inactivity.

• Safety rating: The 2431 is rated to IEC 61010-1 CAT III 300V, ensuring its safety for professional electrical testing.

• Compact and lightweight: Weighing only around 120 grams, this meter is easy to carry and use with one hand.
