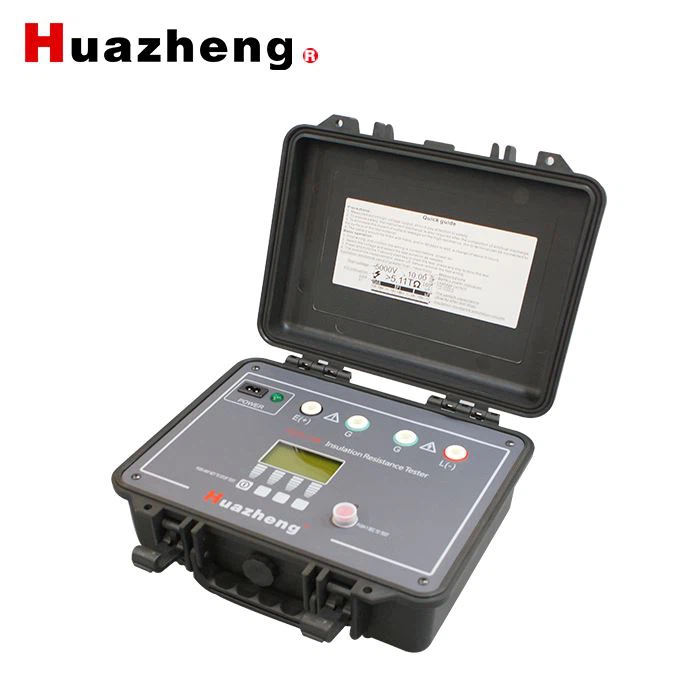

HZJY-15K 15kV Diagnostic Insulation Resistance Tester

Description: The HZJY-15K 15kV high voltage insulation resistance tester includes six voltage levels: 500V, 1000V, 2500V, 5000v, 10kV and 15kV.test up to 15TΩ, manual voltage regulation function.

Feature:

High-voltage insulation resistance tester, with 5 range: 500V, 1000V, 2500V, 5000V, 10000V, 15000V,test up to 15TΩ, manual voltage regulation function.

 ● Strict accordance with the safety standards for design

● Insulation resistance range 15TΩ @ 15 kv

● Short circuit current can be adjusted, maximum 5mA (Can be ordered as high as 10mA, short circuit current products).

● Automatic display polarization index (PI), induced electric absorption test values than (DAR), and can test the leakage current and capacitance.

● Anti-jamming performance is superior, the interference current reaches 2 mA, still ensure accuracy of test instruments.

● 2 methods for power: use of lithium ion batteries, battery life can be up to 4 hours (10000V @ 100MΩ).

● Insulation resistance simulation column.

● Digital filtering functions, external influence deviation display value causing mitigation point using filter function.

● Perfect protection function, and the spare fuse prompt functions.
