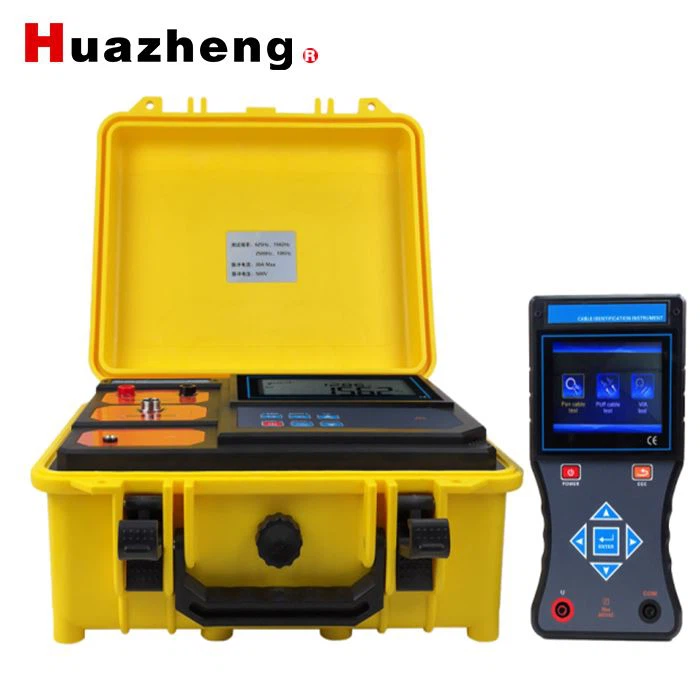

HZDS-5B Underground Electric Power Cable Identifier Machine
Inhouse product
-
TES-1353S Sound Level Meter
$975.00 -
TES-46 LAN Cable Tester
$355.00
Description: |
| Overview:
Live cable identification instrument, also known as cable identification instrument, multi-function cable identification instrument, and intelligent cable identification instrument, is designed for power cable engineers and cable workers to solve the technical problems of cable identification. The user can accurately identify one of the target cables from the multiple cables through the instrument, so as to avoid accidentally sawing the live cables and causing serious accidents. The cable identification starts from the operation at both ends of the cable, and the double numbers at both ends of the cable must be ensured to be accurate. This instrument is designed with PSK technology combined with precise algorithms. No matter how reliable the memory of on-site staff is, it cannot replace the recognition of professional instruments. This product also has the functions of live cable identification, power failure cable identification, AC current test, and AC voltage test. It is composed of a transmitter, a transmitting current clamp, a receiver, and a receiving flexible current clamp. Transmitter: It transmits signals to the target cable during the identification of live cables and power-off cables. Built-in high-performance rechargeable lithium battery, automatic impedance matching, and automatic protection. The transmitter adopts an integrated special toolbox design, uses polypropylene plastic as raw material, and adds new composite fillers for one injection molding. It has low density, strength, rigidity, hardness, wear resistance, heat resistance, and insulation performance. The cabinet can withstand a pressure of about 200kg, the host's large LCD displays the remaining battery power in real time, white backlight, and dynamic indication of the emission signal, which is clear at a glance. Transmitting clamp: When the live cable is identified, the transmitting clamp couples the signal from the transmitter to the target cable. The clamp size is Φ120mm. The transmitting clamp has directivity. The transmitting signal flows in from the direction indicated by the arrow on the transmitting clamp. During live identification: use calipers to couple the output pulse current, emit four frequencies: 625Hz, 1562Hz, 2500Hz, 10kHz, couple to the target cable through the transmitter (the target cable is a three-core armored cable), and inject composite pulses into the cable core Current signal, the pulse current generates an electromagnetic field around the target cable for the receiver and flexible current clamp to detect and identify; because the pulse current has directionality, the detection also has directionality. Power failure recognition: Directly connected output pulse current is used to inject pulse encoding current signal into the cable core. This current generates an electromagnetic field around the target cable for the receiver and flexible current clamp to detect, decode and identify; because the current has directivity, so Detection is also directional. |
