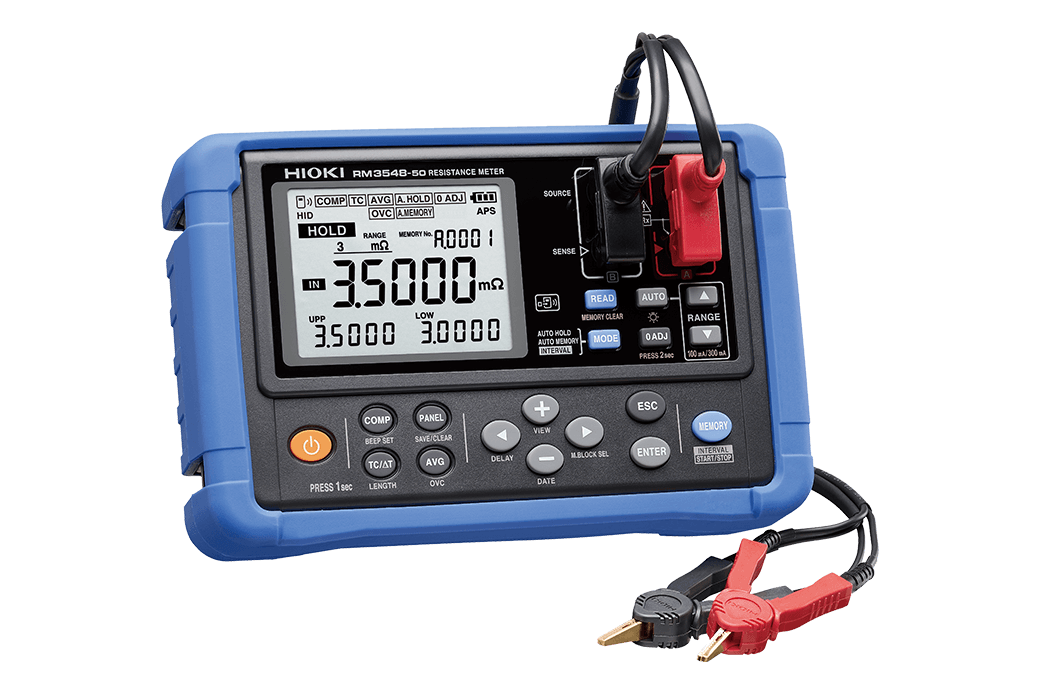

Hioki RM3548-50 Portable DC Resistance Meter, 3mΩ to 3MΩ

Description

The RM3548-50 is the Hioki RM3548-50 Portable Resistance Meter, a high-precision device used for testing electrical resistance in a variety of applications. It is the successor to the Hioki RM3548 and includes upgraded features such as Bluetooth connectivity.

Key Features

• High-precision measurement: The meter measures resistance from 0.1 µΩ (microhms) up to 3.5 MΩ (megaohms).
• 0.02% basic accuracy: This high accuracy is particularly useful for measuring very low resistances, such as those found in windings or weld points.
• Offset Voltage Compensation (OVC): This function is used for accurate low-resistance measurements by minimizing errors.
• Connectivity: The device features Bluetooth communication with the optional Z3210 wireless adapter for sending data to mobile apps or directly to Excel on a PC.
• Portable design: The meter has a handheld, user-friendly form factor for easy use in the field.
• Advanced safety features: For use with high-voltage applications like electric vehicle (EV) maintenance, the RM3548-50 has automatic overvoltage protection and can withstand DC voltages up to 70V.
