Hioki BT3562A Battery HiTester, 100 V

Description

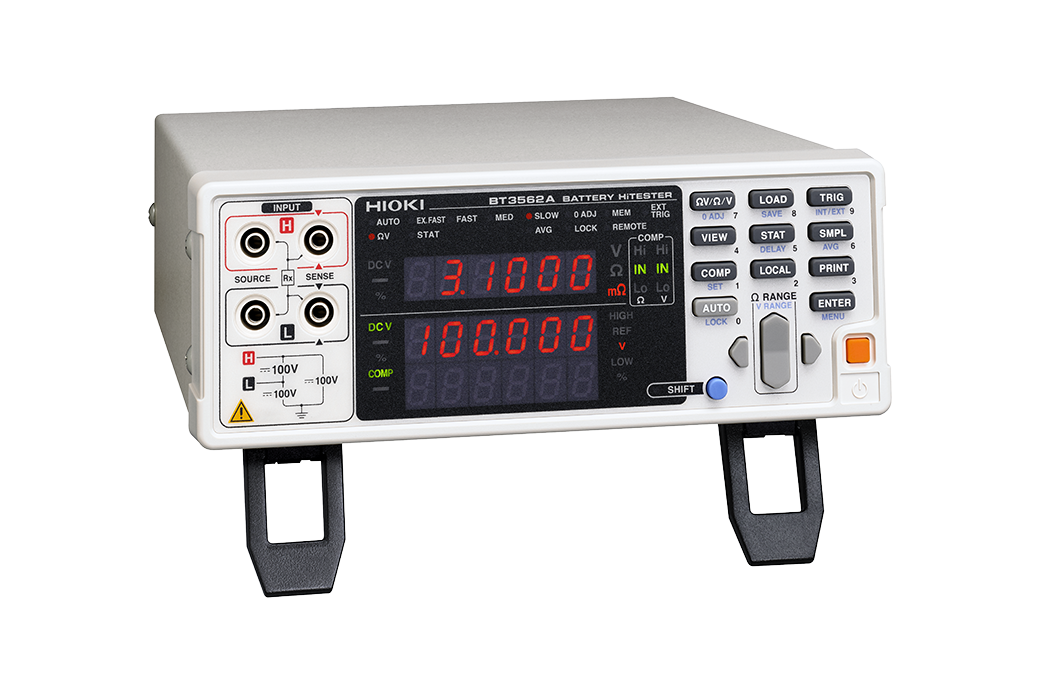

The Hioki BT3562A Battery HiTester is a benchtop instrument for high-speed, high-precision testing of medium-sized battery packs and large cells up to 100V, such as those used in electric vehicles (xEVs). It is primarily designed for automated production lines, as well as for research, development, and acceptance inspections.

Key Features

• Robust design: The BT3562A features strong noise resistance and improved tolerance for line resistance, ensuring reliable operation in production environments.

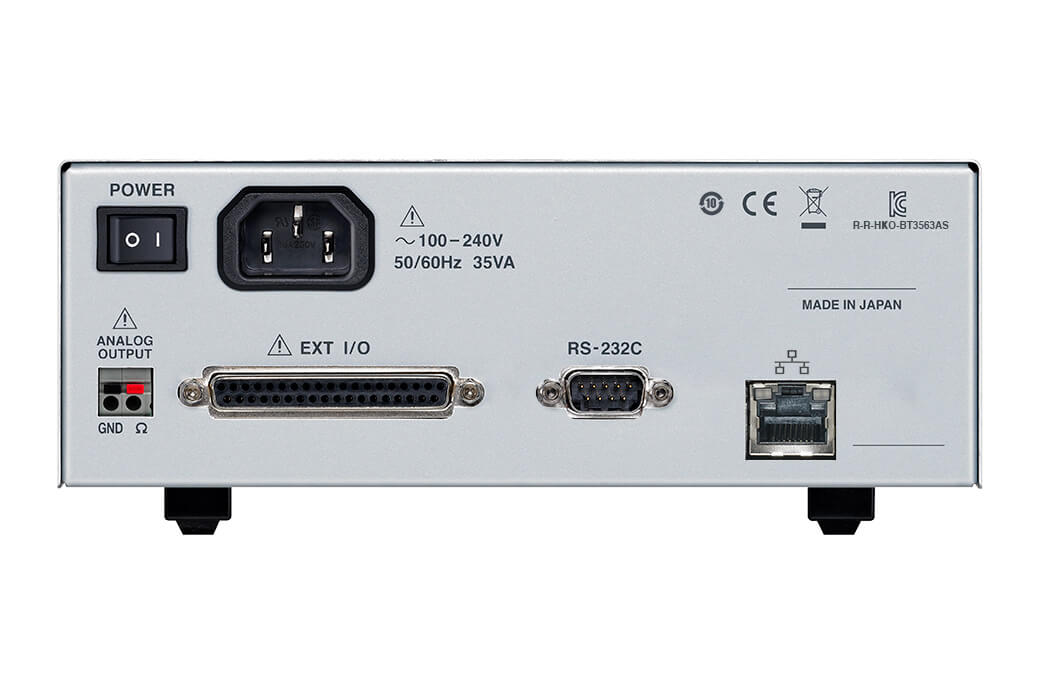

• Standard LAN interface: It comes with standard LAN and RS-232C interfaces for seamless integration into automated testing systems.
• Electrostatic resistance: The instrument is built with high resistance to static electricity, which helps prevent malfunctions on production lines.
• Low resistance testing: With a minimum resistance resolution, it is ideal for testing large, low-resistance cells.
• Larger testing capacity: The BT3562A expands on the BT3561A by supporting battery packs up to 100 V DC, making it suitable for medium-sized packs and large cells for xEVs.
• High-speed measurement: It can simultaneously measure internal resistance (AC-IR) and open-circuit voltage (OCV) with a measurement speed of approximately 10 ms.
