Hioki BT3561A Battery HiTester, 60 V

Description

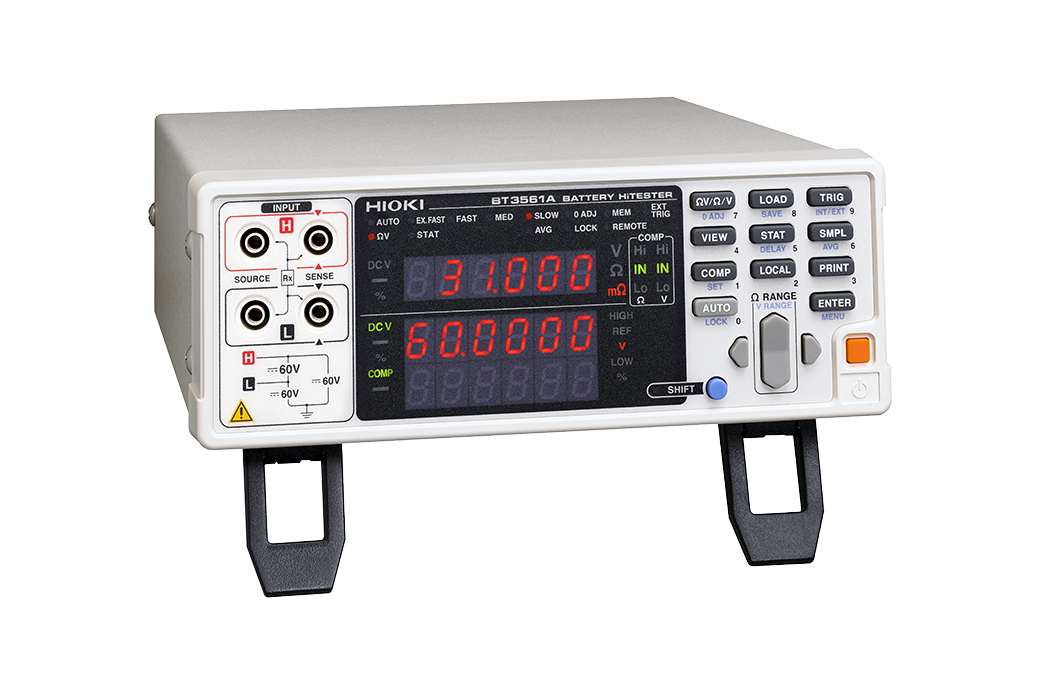

The Hioki BT3561A Battery HiTester is a benchtop instrument designed for high-speed, accurate testing of small battery cells and packs up to 60V. It is primarily used for automated production line testing, as well as for research, development, and acceptance inspections of batteries.

Key Features

• Simultaneous measurements: The BT3561A can simultaneously measure both the battery's internal resistance (using the AC four-terminal method) and its open-circuit voltage (OCV).
• Production line testing: The tester is suitable for fully automated production line testing of small cells for power tools and electric bikes, as well as other small battery packs.
• High accuracy: It offers high accuracy and repeatability in its measurements.
• Noise resistance: The design features strong noise and static electricity resistance to prevent malfunctions on the production line and ensure stable operation.

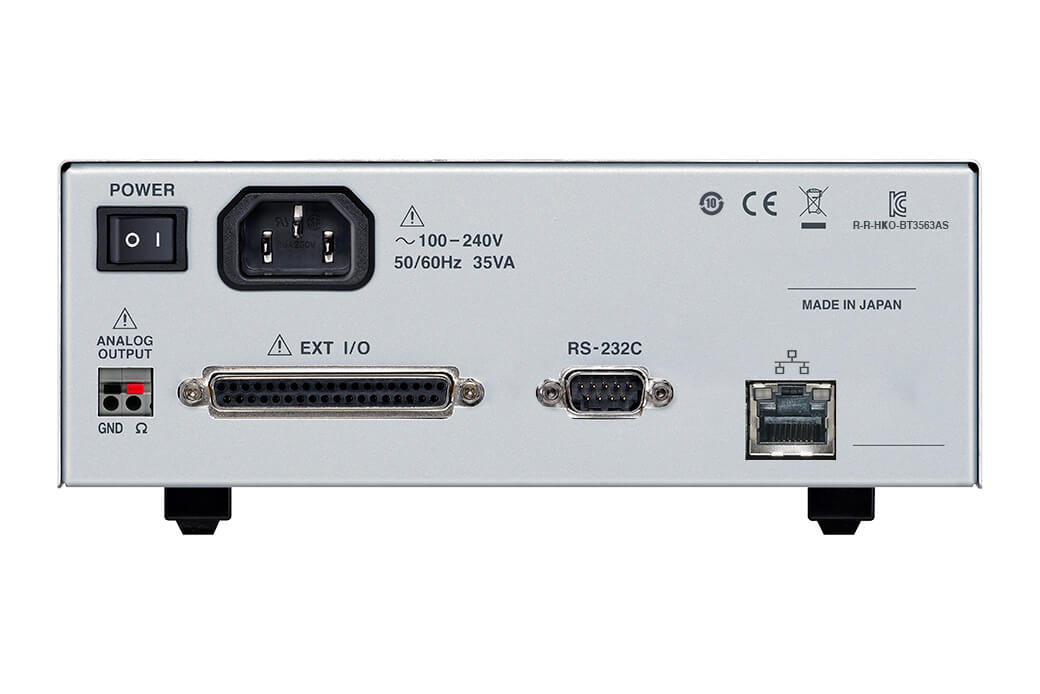

• Standard LAN interface: It comes standard with both LAN (for TCP/IP communication) and RS-232C interfaces, simplifying its integration into automated testing systems.
• Improved line resistance tolerance: The BT3561A has improved tolerance for line resistance, which makes it easier to set up test systems with a large number of channels.
