Chauvin Arnoux CA6116N Multifunction Installation Tester


Sold By:
Inhouse product

Price:
$3,000.00 /Unit

Quantity:
(2 available)

Total Price:

+ Shipping & taxes calculated at checkout on cart checkout page
[Estimated delivery: 5–7 business days]
See Returns Policy
View Warranty & Support Policy


Note: Products sourced from authorized distributors. All items covered by manufacturers / brands warranty.

Share:
Description

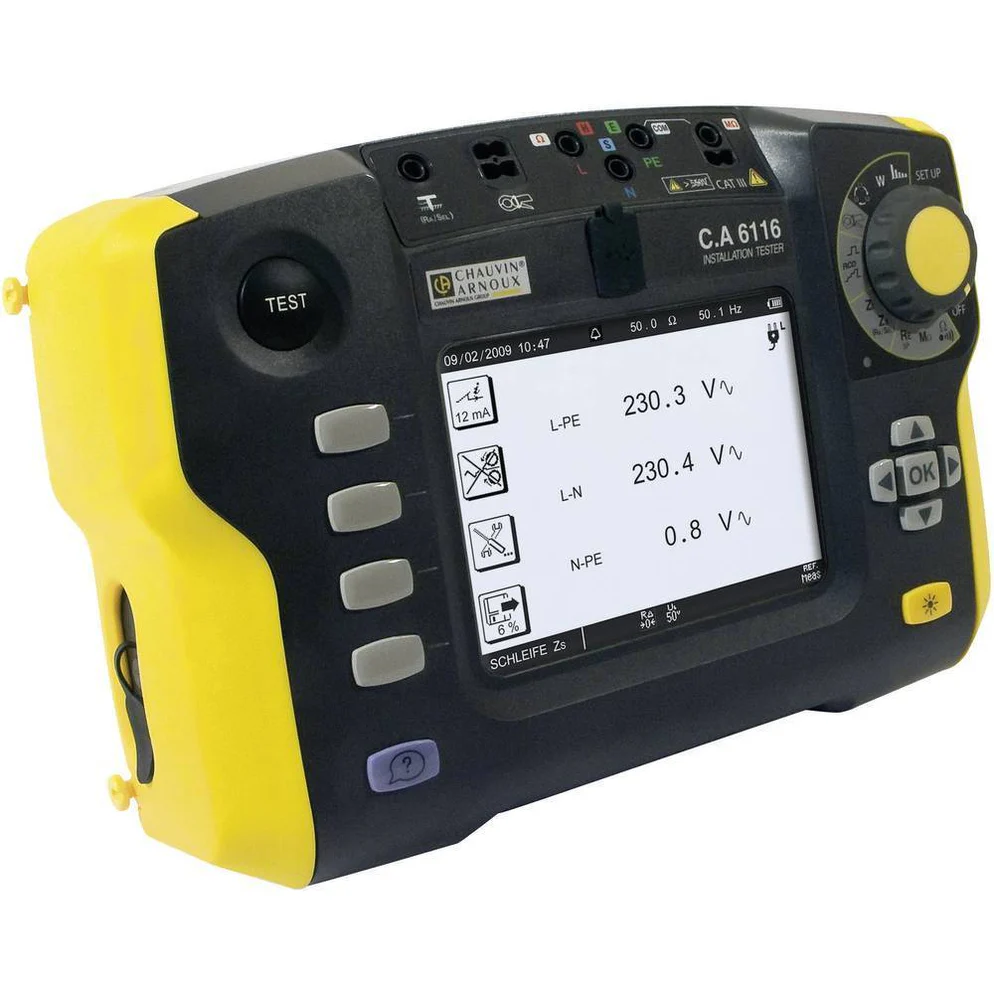

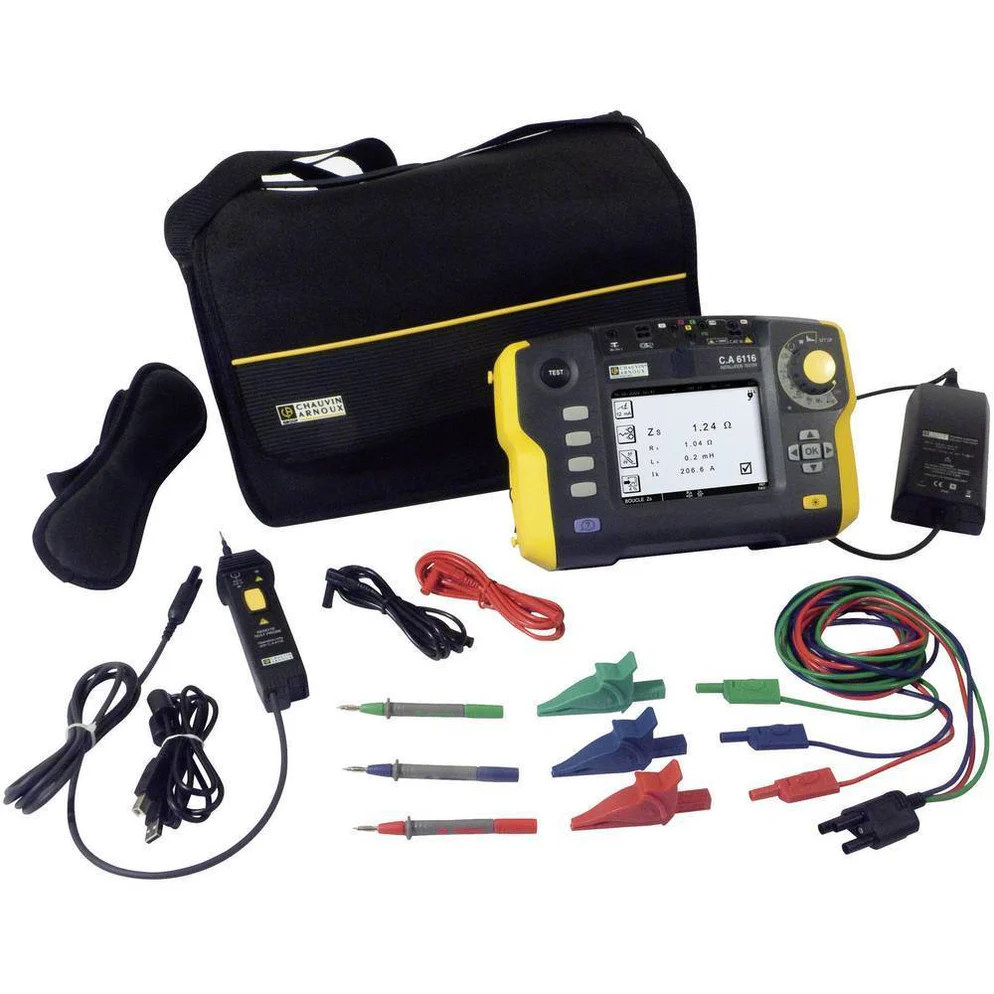

The Chauvin Arnoux CA6116N is a comprehensive multifunction installation tester for verifying electrical installations in compliance with international standards such as IEC 60364-6. It is suitable for all neutral systems (TT, TN, and IT) and can be used in residential, commercial, and industrial sectors.

Key Features
  • Display: Features a large, high-definition backlit color LCD screen that shows measurement results and includes contextual help with connection diagrams for each function.
  • User interface: A rotary switch and navigation keys provide direct and intuitive access to all functions.
  • Data storage and transfer: Can store up to 1,000 tests internally and transfers data via a USB output.
  • Portability: The compact and rugged design includes a multi-point harness for hands-free operation.
  • Insulation resistance: Measures insulation resistance up to 2 GΩ with test voltages of 50, 100, 250, 500, and 1,000 VDC.
  • Continuity: Tests conductor continuity with a minimum current of 200 mA.
  • Earth resistance: Performs 3-pole earth measurements.
  • Loop impedance: Measures loop and line impedance with a resolution of 1 mΩ.
  • RCD testing: Supports general purpose and selective testing for various RCD types, including AC, A, and F.
  • Other measurements: Also measures voltage (AC/DC), frequency, active power, harmonics (up to the 50th order), and phase rotation.
